Description

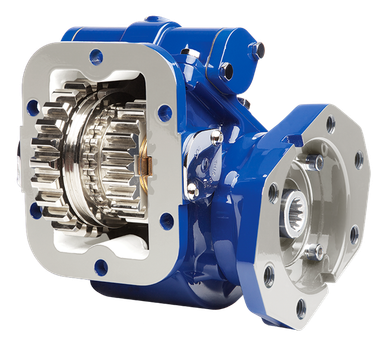

The Muncie TG6N-S7118-E3BH or TG6NS7118E3BH is a TG6 Series double-gear power take-off with a 6-bolt housing and mechanical shift engagement. The die-cast aluminum housing reduces noise and dissipates heat, while the constant mesh input gear isolates the transmission from engagement errors. At 9.13 in. tall, 10.38 in. wide, and 12.5 in. long, the compact footprint minimizes mounting interference. Rotatable hydraulic flanges maximize pump clearance, and the extra-large shift cover opening gives quick access to check backlash. The modular design simplifies field repair. Call us to confirm proper fit for your transmission and application.
Features
TG6 Series double-gear PTO, 6-bolt housing for simplified installation
Mechanical shift engagement
Die-cast aluminum housing for reduced noise and superior heat dissipation
Constant mesh input gear isolates transmission from engagement errors
Rotatable hydraulic flanges maximize pump clearance
Extra-large shift cover opening allows easy backlash inspection
Modular design for flexibility and ease of repair
Tech Specs
- Height: 9.13 in.
- Width: 10.38 in.
- Length: 12.5 in.
- Housing: Die-cast aluminum
- Bolt pattern: 6-bolt
- Shift type: Mechanical
- Series: TG6 (TG Series double-gear PTO)
