Description

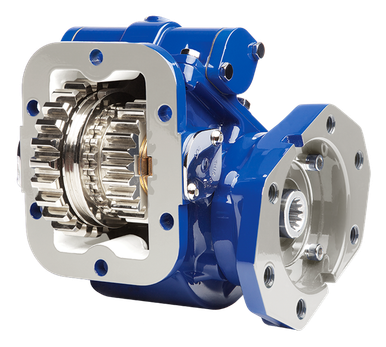

The Muncie TG6N-S7118-C3KI or TG6NS7118C3KI is a TG6 Series double-gear power take-off with a 6-bolt housing and mechanical shift. The die-cast aluminum housing reduces heat buildup and keeps the unit compact, minimizing mounting interference on the transmission. A constant mesh input gear isolates the transmission from engagement errors during shift. The extra-large shift cover opening provides direct access to check backlash without major disassembly. Rotatable hydraulic flanges allow the output to be positioned for maximum pump clearance. Dimensions are 9.13 in. H x 10.38 in. W x 12.5 in. L. Call us to confirm proper fit for your transmission and application.
Features
TG6 Series double-gear power take-off, 6-bolt mechanical shift
Die-cast aluminum housing for reduced heat buildup and compact packaging
Constant mesh input gear isolates transmission from engagement errors
Extra-large shift cover opening for easy backlash inspection
Rotatable hydraulic flanges for maximum pump positioning clearance
Modular design supports field repair and component flexibility
Tech Specs
- Height: 9.13 in.
- Width: 10.38 in.
- Length: 12.5 in.
- Housing: 6-bolt, die-cast aluminum
- Shift type: Mechanical
- Series: TG6
- Part Number: TG6N-S7118-C3KI or TG6NS7118C3KI
