Description

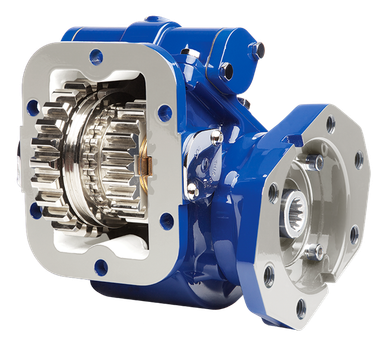

The Muncie TG6N-S7115-E3VH or TG6NS7115E3VH is a TG Series double-gear power take-off with a 6-bolt housing and mechanical shift configuration. The die-cast aluminum housing keeps the unit compact while dissipating heat and reducing operating noise. A constant mesh input gear isolates the transmission from engagement errors, protecting the drivetrain during PTO operation. The extra-large shift cover opening gives technicians direct access to check backlash without disassembly. Rotatable hydraulic flanges let you orient the output for maximum pump clearance in tight installations. The modular design simplifies field repairs. Call us to confirm proper fit for your transmission and application.
Features
TG Series double-gear power take-off, part number TG6N-S7115-E3VH or TG6NS7115E3VH
6-bolt housing for simplified installation
Mechanical shift configuration
Die-cast aluminum housing for reduced weight, lower noise, and improved heat dissipation
Constant mesh input gear isolates the transmission from engagement errors
Rotatable hydraulic flanges maximize pump clearance in tight mounting situations
Extra-large shift cover opening allows easy backlash inspection without major disassembly
Tech Specs
- Series: TG6 (TG Series double-gear PTO)
- Housing bolt pattern: 6-bolt
- Shift type: Mechanical shift
- Housing material: Die-cast aluminum
- Input gear type: Constant mesh
- Hydraulic flanges: Rotatable
- Dimensions (H x W x L): 9.13 in. x 10.38 in. x 12.5 in.
