Description

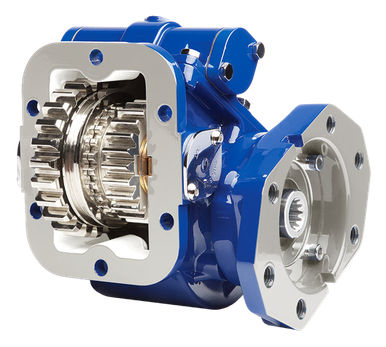

The Muncie TG6N-S7115-E3PH or TG6NS7115E3PH is a TG6 Series power take-off with a 6-bolt housing and mechanical shift configuration. Part of Muncie’s most widely used double-gear PTO family, the TG Series is available with 10 speed ratios, 13 shift types, 10 output shaft options, and 11 input gears covering most popular transmissions. The die-cast aluminum housing reduces noise and dissipates heat, while the constant mesh input gear isolates the transmission from engagement errors. An extra-large shift cover opening makes backlash checks straightforward. Rotatable hydraulic flanges maximize pump clearance, and the compact footprint – 9.13 in. H x 10.38 in. W x 12.5 in. L – limits mounting interference. Call us to confirm proper fit for your application.
Features
TG6 Series double-gear PTO with 6-bolt housing and mechanical shift
Die-cast aluminum housing for reduced noise and superior heat dissipation
Constant mesh input gear isolates transmission from engagement errors
Extra-large shift cover opening for easy backlash inspection
Rotatable hydraulic flanges maximize pump clearance
Compact housing dimensions: 9.13 in. H x 10.38 in. W x 12.5 in. L
