Description

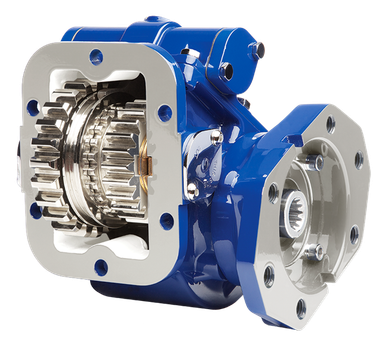

The Muncie TG6N-S7115-C3VH (also referenced as TG6NS7115C3VH) is a TG Series double-gear power take-off with a 6-bolt mechanical shift configuration. The die-cast aluminum housing reduces noise and dissipates heat, while the constant mesh input gear isolates the transmission from engagement errors. A modular design simplifies field repairs, and the extra-large shift cover opening makes it straightforward to check backlash without full disassembly. Rotatable hydraulic flanges provide flexibility in pump positioning, and the compact footprint minimizes mounting interference. Pro Gear and Transmission stocks genuine Muncie parts. Call us to confirm this unit is the correct fit for your transmission and application.
Features
TG Series double-gear PTO with 6-bolt mechanical shift configuration
Die-cast aluminum housing reduces noise and provides superior heat dissipation
Constant mesh input gear isolates transmission from engagement errors
Modular design allows easy field repair and component replacement
Extra-large shift cover opening simplifies backlash inspection
Rotatable hydraulic flanges maximize pump positioning clearance
Tech Specs
- Housing Bolt Pattern: 6-bolt
- Shift Type: Mechanical shift
- Housing Material: Die-cast aluminum
- Series: TG6 (TG Series double-gear PTO)
- Dimensions (H x W x L): 9.13 in. x 10.38 in. x 12.5 in.
