Description

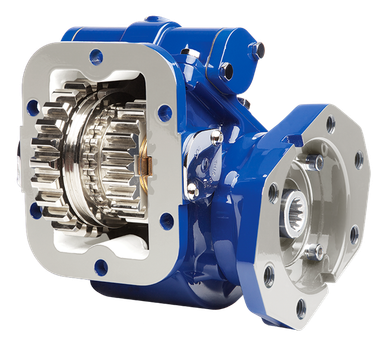

The Muncie TG6N-S7115-C3TH or TG6NS7115C3TH is a TG6 Series double-gear power take-off with a 6-bolt housing and mechanical shift. The die-cast aluminum housing keeps the unit compact, with exterior dimensions of 9.13 in. x 10.38 in. x 12.5 in., and aids heat dissipation compared to cast iron alternatives. A constant mesh input gear isolates the transmission from engagement errors during PTO cycling. Rotatable hydraulic flanges allow pump positioning flexibility, and the oversized shift cover opening makes backlash inspection straightforward without removing the unit. The modular design simplifies field repairs. Call us to confirm proper fit and transmission compatibility for your application.
Features
TG6 Series double-gear PTO with 6-bolt housing and mechanical shift
Die-cast aluminum housing for reduced noise and improved heat dissipation
Constant mesh input gear isolates transmission from engagement errors
Rotatable hydraulic flanges for maximum pump clearance and positioning flexibility
Oversized shift cover opening for easy backlash inspection in the field
Modular design allows component-level repair without full unit replacement
Tech Specs
- Housing material: Die-cast aluminum
- Housing bolt pattern: 6-bolt
- Shift type: Mechanical shift
- Height: 9.13 in.
- Width: 10.38 in.
- Length: 12.5 in.
- Sold as: Each
