Description

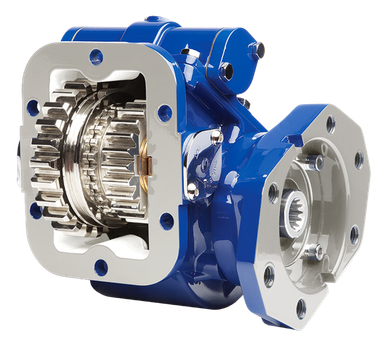

The Muncie TG6N-S7115-C3QH or TG6NS7115C3QH is a TG6 Series double-gear power take-off built with a 6-bolt housing and mechanical shift. The die-cast aluminum housing reduces noise and dissipates heat, while the constant mesh input gear isolates the transmission from engagement errors during shifting. A compact footprint minimizes mounting interference on the transmission, and rotatable hydraulic flanges give you clearance flexibility when positioning a pump. The modular design simplifies field repairs, and the extra-large shift cover opening makes backlash checks straightforward. Call us to confirm proper fit for your application.
Features
TG6 Series double-gear PTO, part number TG6N-S7115-C3QH or TG6NS7115C3QH
6-bolt housing for simplified installation
Mechanical shift type
Die-cast aluminum housing for reduced noise and superior heat dissipation
Constant mesh input gear isolates transmission from engagement errors
Rotatable hydraulic flanges maximize pump clearance
Extra-large shift cover opening allows easy backlash inspection
Tech Specs
- Series: TG6
- Housing: Die-cast aluminum, 6-bolt
- Shift Type: Mechanical
- Housing Dimensions (H x W x L): 9.13 in. x 10.38 in. x 12.5 in.
