Description

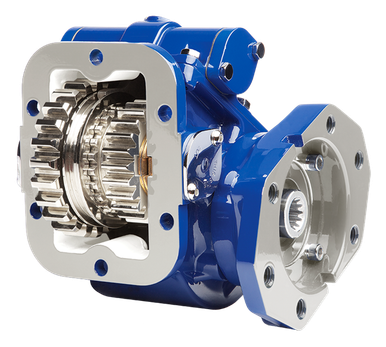

The Muncie TG6N-S7115-A3KG or TG6NS7115A3KG is a TG6 Series power take-off with a 6-bolt housing and mechanical shift configuration. It uses a die-cast aluminum housing for reduced noise and improved heat dissipation, and a constant mesh input gear that isolates the transmission from engagement errors during PTO engagement. The modular design simplifies field repairs, while the compact envelope minimizes mounting interference on tight installations. Rotatable hydraulic flanges allow pump clearance to be dialed in without major repositioning. The extra-large shift cover opening gives technicians direct access to check backlash without removing the unit. Call us to confirm proper fit for your transmission and application.
Features
TG6 Series PTO – 6-bolt housing for straightforward installation
Mechanical shift configuration
Die-cast aluminum housing reduces noise and dissipates heat
Constant mesh input gear isolates the transmission from engagement errors
Modular design allows component-level repair without full unit replacement
Rotatable hydraulic flanges adjust pump clearance; extra-large shift cover opening provides backlash access
Tech Specs
- Series: TG6
- Housing Bolt Pattern: 6-bolt
- Shift Type: Mechanical
- Housing Material: Die-cast aluminum
- Height: 9.13 in.
- Width: 10.38 in.
- Length: 12.5 in.
