Description

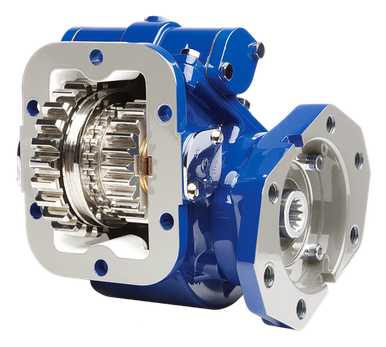

The Muncie TG6N-S7113-X3SH or TG6NS7113X3SH is a TG6 Series power take-off featuring a 6-bolt housing and mechanical shift. The die-cast aluminum housing reduces weight and dissipates heat, while the constant mesh input gear isolates the transmission from engagement errors. Rotatable hydraulic flanges maximize pump clearance, and the extra-large shift cover opening makes backlash checks straightforward. The modular design keeps repair and reconfiguration manageable. With overall dimensions of 9.13 in. (H) x 10.38 in. (W) x 12.5 in. (L), the compact footprint minimizes mounting interference in tight installation spaces. Call us to confirm proper fit for your transmission and application.
Features
TG6 Series PTO, 6-bolt housing for simplified installation
Mechanical shift configuration
Die-cast aluminum housing for reduced noise and superior heat dissipation
Constant mesh input gear isolates transmission from engagement errors
Rotatable hydraulic flanges to maximize pump clearance
Extra-large shift cover opening allows easy backlash inspection
Tech Specs
Additional Information
| PTO TORQUE & HORSEPOWER RATINGS | ||||||
|---|---|---|---|---|---|---|
| Speed Ratio | Intermittent HP @ 1000 RPM | Intermittent Torque (lb-ft) | Continuous Torque (lb-ft) | Intermittent (kW) @ 1000 RPM | Intermittent Torque (Nm) | Continuous Torque (Nm) |
| 04 | 54 | 285 | 200 | (40) | (386) | (270) |
| 05 | 51 | 270 | 189 | (38) | (366) | (256) |
| 06 | 47 | 245 | 172 | (35) | (332) | (232) |
| 07 | 44 | 230 | 161 | (33) | (312) | (218) |
| 08 | 44 | 230 | 161 | (33) | (312) | (218) |
| 09 | 39 | 205 | 144 | (29) | (278) | (195) |
| 12H | 40 | 210 | 147 | (30) | (284) | (199) |
| 13H | 40 | 210 | 147 | (30) | (284) | (199) |
| 15H | 37 | 195 | 137 | (28) | (264) | (185) |
| 18H | 33 | 175 | 123 | (25) | (237) | (166) |
