Description

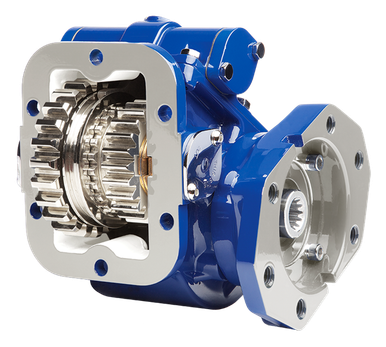

The Muncie TG6N-S7113-P3KI or TG6NS7113P3KI is a TG6 Series double-gear power take-off with a 6-bolt housing and mechanical shift. The die-cast aluminum housing reduces noise and dissipates heat, while the compact envelope – 9.13 in. H x 10.38 in. W x 12.5 in. L – minimizes mounting interference. A constant mesh input gear isolates the transmission from engagement errors during engagement. The extra-large shift cover opening allows backlash inspection without disassembly, and the rotatable hydraulic flanges let you maximize pump clearance to suit your installation. The modular design simplifies field repair. Call Pro Gear and Transmission to confirm this unit fits your transmission.
Features
TG6 Series double-gear PTO with 6-bolt housing for simplified installation
Mechanical shift configuration
Die-cast aluminum housing for reduced noise and superior heat dissipation
Constant mesh input gear isolates transmission from engagement errors
Extra-large shift cover opening allows easy backlash inspection
Rotatable hydraulic flanges maximize pump clearance
Compact housing: 9.13 in. H x 10.38 in. W x 12.5 in. L
Tech Specs
- Series: Muncie TG6 Series double-gear Power Take-Off
- Part Number: TG6N-S7113-P3KI or TG6NS7113P3KI
- Housing Bolt Pattern: 6-bolt
- Shift Type: Mechanical shift
- Housing Material: Die-cast aluminum
- Dimensions (H x W x L): 9.13 in. x 10.38 in. x 12.5 in.
Additional Information
| PTO TORQUE & HORSEPOWER RATINGS | ||||||
|---|---|---|---|---|---|---|
| Speed Ratio | Intermittent HP @ 1000 RPM | Intermittent Torque (lb-ft) | Continuous Torque (lb-ft) | Intermittent (kW) @ 1000 RPM | Intermittent Torque (Nm) | Continuous Torque (Nm) |
| 04 | 54 | 285 | 200 | (40) | (386) | (270) |
| 05 | 51 | 270 | 189 | (38) | (366) | (256) |
| 06 | 47 | 245 | 172 | (35) | (332) | (232) |
| 07 | 44 | 230 | 161 | (33) | (312) | (218) |
| 08 | 44 | 230 | 161 | (33) | (312) | (218) |
| 09 | 39 | 205 | 144 | (29) | (278) | (195) |
| 12H | 40 | 210 | 147 | (30) | (284) | (199) |
| 13H | 40 | 210 | 147 | (30) | (284) | (199) |
| 15H | 37 | 195 | 137 | (28) | (264) | (185) |
| 18H | 33 | 175 | 123 | (25) | (237) | (166) |
Ratings above are TG Series family ratings. Verify the correct speed ratio for your specific application before ordering. Call Pro Gear and Transmission to confirm proper fit.
