Description

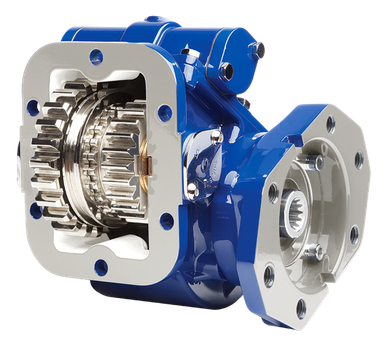

The Muncie TG6N-S7113-E1KG or TG6NS7113E1KG is a TG6 Series power take-off with a 6-bolt housing and mechanical shift configuration. Muncie’s TG Series is the most widely used double-gear type PTO in the industry, offered across 10 speed ratios, 13 shift types, 10 output shaft options, and 11 input gear choices to cover most popular transmissions. The die-cast aluminum housing reduces noise and improves heat dissipation compared to iron alternatives. A constant mesh input gear isolates the transmission from engagement errors, and the modular design simplifies field repair. Rotatable hydraulic flanges allow pump clearance adjustments without remounting. Call us to confirm proper fit for your transmission and application.
Features
TG6 Series PTO, part number TG6N-S7113-E1KG or TG6NS7113E1KG
6-bolt housing for simplified installation
Mechanical shift configuration
Die-cast aluminum housing for reduced weight and improved heat dissipation
Constant mesh input gear isolates transmission from engagement errors
Rotatable hydraulic flanges maximize pump clearance
Tech Specs
Additional Information
| PTO TORQUE & HORSEPOWER RATINGS | ||||||
|---|---|---|---|---|---|---|
| Speed Ratio | Intermittent HP @ 1000 RPM | Intermittent Torque (lb-ft) | Continuous Torque (lb-ft) | Intermittent (kW) @ 1000 RPM | Intermittent Torque (Nm) | Continuous Torque (Nm) |
| 04 | 54 | 285 | 200 | (40) | (386) | (270) |
| 05 | 51 | 270 | 189 | (38) | (366) | (256) |
| 06 | 47 | 245 | 172 | (35) | (332) | (232) |
| 07 | 44 | 230 | 161 | (33) | (312) | (218) |
| 08 | 44 | 230 | 161 | (33) | (312) | (218) |
| 09 | 39 | 205 | 144 | (29) | (278) | (195) |
| 12H | 40 | 210 | 147 | (30) | (284) | (199) |
| 13H | 40 | 210 | 147 | (30) | (284) | (199) |
| 15H | 37 | 195 | 137 | (28) | (264) | (185) |
| 18H | 33 | 175 | 123 | (25) | (237) | (166) |
