Description

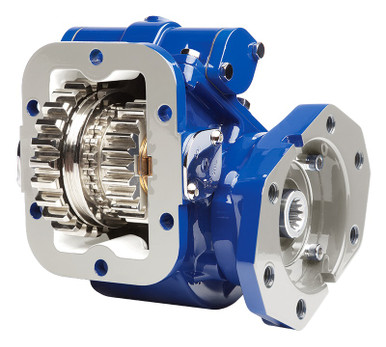

The Muncie TG6N-S7113-C3CH or TG6NS7113C3CH is a TG6 Series double-gear power take-off featuring a 6-bolt housing and mechanical shift. The TG Series is Muncie Power Products’ most widely used PTO line, built around a die-cast aluminum housing that reduces noise and aids heat dissipation. A constant-mesh input gear isolates the transmission from engagement errors, and the modular design simplifies field repair. Rotatable hydraulic flanges maximize pump clearance, and the extra-large shift cover opening makes backlash checks straightforward. Call us to confirm proper fit for your transmission and application.
Features
TG6 Series double-gear power take-off
6-bolt die-cast aluminum housing for simplified installation and reduced noise
Mechanical shift configuration
Constant-mesh input gear isolates transmission from engagement errors
Modular design for ease of repair
Rotatable hydraulic flanges for maximum pump clearance
Tech Specs
- Series: Muncie TG6 Series Power Take-Off
- Shift Type: Mechanical
- Housing: 6-bolt die-cast aluminum
- Overall Dimensions (H x W x L): 9.13 in. x 10.38 in. x 12.5 in.
