Description

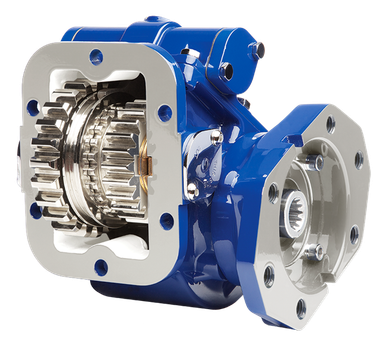

The Muncie TG6N-S7112-C3BH or TG6NS7112C3BH is a TG6 Series double-gear power take-off with a 6-bolt housing and mechanical shift configuration. The die-cast aluminum housing cuts noise and dissipates heat, while the constant mesh input gear isolates the transmission from engagement errors during PTO engagement. A modular design simplifies field repair, and the extra-large shift cover opening gives easy access to check backlash without removing the unit. Rotatable hydraulic flanges let you position the pump for maximum clearance. Overall dimensions are 9.13 in. H x 10.38 in. W x 12.5 in. L. Call us to confirm proper fit for your transmission and application.
Features
TG6 Series double-gear PTO, part number TG6N-S7112-C3BH or TG6NS7112C3BH
6-bolt housing for simplified installation
Mechanical shift configuration
Die-cast aluminum housing for reduced noise and improved heat dissipation
Constant mesh input gear isolates transmission from engagement errors
Rotatable hydraulic flanges for maximum pump clearance
Extra-large shift cover opening allows easy backlash inspection
Tech Specs
- Series: TG6 (double-gear type)
- Housing: 6-bolt, die-cast aluminum
- Shift type: Mechanical
- Housing dimensions: 9.13 in. H x 10.38 in. W x 12.5 in. L
