Description

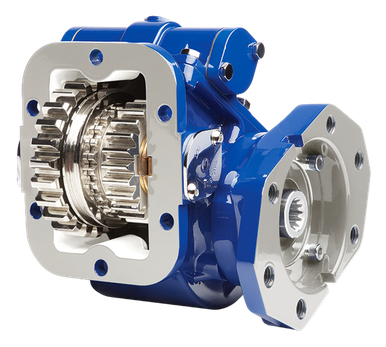

The Muncie TG6N-S7112-C2PH or TG6NS7112C2PH is a TG6 Series power take-off featuring a 6-bolt housing with mechanical shift configuration. The die-cast aluminum housing reduces noise and dissipates heat, while keeping the unit compact enough to minimize mounting interference. A constant mesh input gear isolates the transmission from engagement errors during PTO engagement. The modular design simplifies field repairs, and the extra-large shift cover opening allows direct access to check backlash without major disassembly. Rotatable hydraulic flanges give additional clearance when positioning a pump. The TG Series is compatible with a range of popular transmissions. Call us to confirm proper fit for your specific application.
Features
TG6 Series PTO – part number TG6N-S7112-C2PH or TG6NS7112C2PH
6-bolt housing for direct, simplified installation
Mechanical shift configuration
Die-cast aluminum housing for reduced noise and improved heat dissipation
Constant mesh input gear isolates transmission from engagement errors
Modular design for flexibility and ease of repair in the field
Rotatable hydraulic flanges for maximum pump clearance
Tech Specs
- Series: Muncie TG6
- Part Number: TG6N-S7112-C2PH or TG6NS7112C2PH
- Housing: 6-bolt die-cast aluminum
- Shift Type: Mechanical shift
- Housing Height: 9.13 in.
- Housing Width: 10.38 in.
- Housing Length: 12.5 in.
