Description

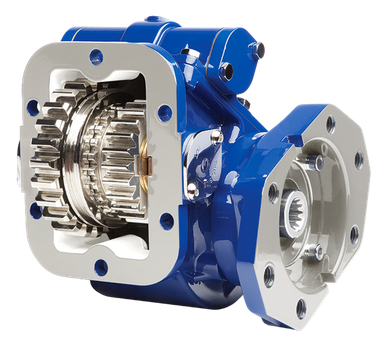

The Muncie TG6N-S7112-C1BH or TG6NS7112C1BH is a TG6 Series double-gear power take-off with a 6-bolt housing and mechanical shift configuration. It uses a die-cast aluminum housing for reduced noise and improved heat dissipation, and a constant mesh input gear that isolates the transmission from engagement errors during PTO engagement. The modular design simplifies field repair, while the compact envelope minimizes mounting interference. Rotatable hydraulic flanges help maximize pump clearance, and an extra-large shift cover opening allows easy backlash checks without removing the unit. Overall dimensions are 9.13 in. H x 10.38 in. W x 12.5 in. L. Call us to confirm proper fit for your transmission and application.
Features
TG6 Series double-gear power take-off, 6-bolt housing configuration
Mechanical shift – no shift cables required by design; electric/hydraulic shift option available within the TG Series platform
Die-cast aluminum housing reduces noise and provides superior heat dissipation
Constant mesh input gear isolates the transmission from engagement errors
Rotatable hydraulic flanges maximize pump clearance at installation
Extra-large shift cover opening allows backlash inspection without unit removal
Tech Specs
- Housing Material: Die-cast aluminum
- Housing Bolt Pattern: 6-bolt
- Shift Type: Mechanical shift
- Overall Height: 9.13 in.
- Overall Width: 10.38 in.
- Overall Length: 12.5 in.
- Series: TG6 (TG Series double-gear PTO)
- Part Number: TG6N-S7112-C1BH or TG6NS7112C1BH
