Description

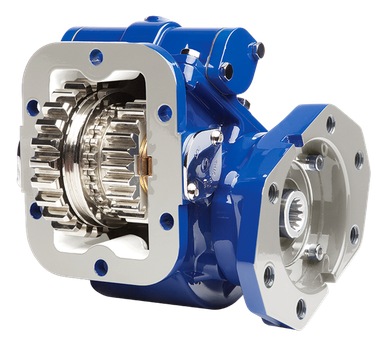

The Muncie TG6N-S7109-A2SX or TG6NS7109A2SX is a TG6 Series power take-off with a 6-bolt mechanical shift configuration and die-cast aluminum housing. The TG Series is Muncie’s most widely used double-gear type PTO, available across a broad range of transmission applications. The constant mesh input gear isolates the transmission from engagement errors, while the modular design simplifies field repairs. Rotatable hydraulic flanges allow pump clearance adjustment without repositioning the unit. Overall dimensions are 9.13 in. H x 10.38 in. W x 12.5 in. L. Pro Gear and Transmission stocks genuine Muncie parts – call us to confirm this unit fits your transmission and application.
Features
TG6 Series double-gear type power take-off, 6-bolt housing configuration
Mechanical shift operation
Die-cast aluminum housing for reduced noise and superior heat dissipation
Constant mesh input gear isolates transmission from engagement errors
Rotatable hydraulic flanges maximize pump clearance
Modular design allows for flexibility and ease of repair in the field
Extra large shift cover opening provides easy access to check backlash
Tech Specs
- Series: Muncie TG6 Series Power Take-Off
- Configuration: 6-bolt mechanical shift
- Housing: Die-cast aluminum
- Dimensions: 9.13 in. H x 10.38 in. W x 12.5 in. L
- Shift type: Mechanical
- Bolt pattern: 6-bolt
- Input gear type: Constant mesh
