Description

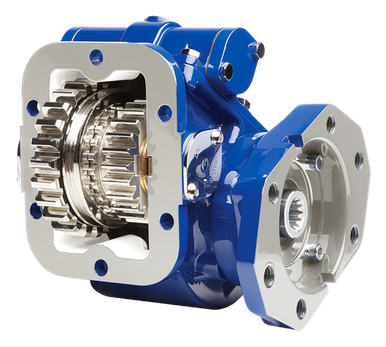

The Muncie TG6N-S7108-A3KX or TG6NS7108A3KX is a TG Series double-gear power take-off, the most widely used PTO family in the industry. The TG Series die-cast aluminum housing reduces noise and dissipates heat, while the constant mesh input gear isolates the transmission from engagement errors. The 6 or 8-bolt housing pattern simplifies installation, and the compact envelope minimizes mounting interference. An electric or hydraulic shift option eliminates shift cables entirely. The extra-large shift cover opening makes backlash checks straightforward, and rotatable hydraulic flanges give maximum pump clearance. The modular design simplifies field repair. Call us to confirm proper fit for your transmission and application.
Features
Die-cast aluminum housing reduces weight and noise, with superior heat dissipation
6 or 8-bolt housing pattern for simplified installation
Constant mesh input gear isolates transmission from engagement errors
Electric or hydraulic shift option eliminates the need for shift cables
Extra-large shift cover opening allows easy access to check backlash
Rotatable hydraulic flanges maximize pump clearance
Tech Specs
Additional Information
| PTO TORQUE & HORSEPOWER RATINGS | ||||||
|---|---|---|---|---|---|---|
| Speed Ratio | Intermittent HP at 1000 RPM | Intermittent Torque (lb-ft) | Continuous Torque (lb-ft) | Intermittent (kW) at 1000 RPM | Intermittent Torque (Nm) | Continuous Torque (Nm) |
| 04 | 54 | 285 | 200 | (40) | (386) | (270) |
| 05 | 51 | 270 | 189 | (38) | (366) | (256) |
| 06 | 47 | 245 | 172 | (35) | (332) | (232) |
| 07 | 44 | 230 | 161 | (33) | (312) | (218) |
| 08 | 44 | 230 | 161 | (33) | (312) | (218) |
| 09 | 39 | 205 | 144 | (29) | (278) | (195) |
| 12H | 40 | 210 | 147 | (30) | (284) | (199) |
| 13H | 40 | 210 | 147 | (30) | (284) | (199) |
| 15H | 37 | 195 | 137 | (28) | (264) | (185) |
| 18H | 33 | 175 | 123 | (25) | (237) | (166) |
