Description

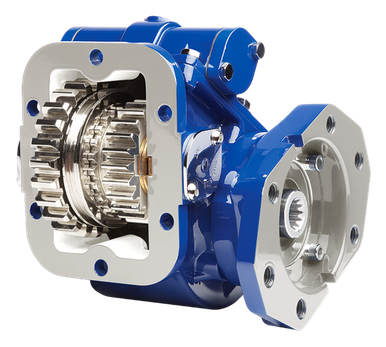

The Muncie TG6N-S7108-A1KX or TG6NS7108A1KX is a TG6 Series double-gear power take-off with a 6-bolt housing and mechanical shift. Part of Muncie’s most widely used PTO line, the TG Series is built around a die-cast aluminum housing for reduced noise and superior heat dissipation. The constant mesh input gear design isolates the transmission from engagement errors during operation. Compact dimensions of 9.13 in. H x 10.38 in. W x 12.5 in. L keep mounting interference to a minimum. The extra large shift cover opening allows access for backlash checks without disassembly. Call us to confirm proper fit for your transmission and application.
Features
TG6 Series double-gear power take-off, 6-bolt housing configuration
Mechanical shift type
Die-cast aluminum housing reduces noise and aids heat dissipation
Constant mesh input gear isolates the transmission from engagement errors
Compact housing dimensions: 9.13 in. H x 10.38 in. W x 12.5 in. L
Extra large shift cover opening for easy backlash inspection
Tech Specs
- Series: TG6
- Housing: 6-bolt die-cast aluminum
- Shift type: Mechanical
- Height: 9.13 in.
- Width: 10.38 in.
- Length: 12.5 in.
- Part number: TG6N-S7108-A1KX or TG6NS7108A1KX
