Description

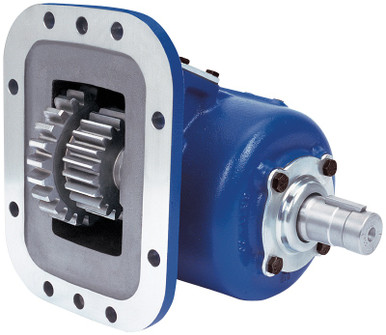

The Muncie SH8S-U6809-E3EX (also listed as SH8SU6809E3EX) is an SH8 Series medium-duty power takeoff unit built around an 8-bolt cast iron housing. The integral air shift design keeps the air cylinder internal, eliminating exposure to road debris. Five speed ratios and 12 output shaft options cover a wide range of pump configurations, while 17 available input gear sets allow fitment to most popular heavy-duty transmissions. Continuous torque ratings range up to 280 lb-ft depending on the speed ratio selected, with intermittent ratings reaching 400 lb-ft at the 05 and 07 ratio positions. Call us to confirm the correct input gear set and output shaft configuration for your specific transmission and pump pairing.
Features
SH8 Series medium-duty PTO with 8-bolt cast iron housing
Integral air shift design – no exposed external air cylinder
5 speed ratios available; intermittent torque up to 400 lb-ft (542 Nm) at select ratios
Continuous torque up to 280 lb-ft (379 Nm) depending on speed ratio
17 input gear sets for compatibility with most popular heavy-duty transmissions
12 output shaft options to match most common hydraulic pump interfaces
Tech Specs
- Series: SH8
- Housing: 8-bolt cast iron
- Shift Type: Mechanical (integral air shift, no exposed air cylinder)
- Speed Ratios Available: 5
- Input Gear Sets Available: 17
- Output Shaft Options: 12
- Intermittent Torque (Ratios 05, 07): 400 lb-ft (542 Nm)
- Continuous Torque (Ratios 05, 07): 280 lb-ft (379 Nm)
- Intermittent HP @ 1000 RPM (Ratios 05, 07): 76 HP (57 kW)
- Intermittent Torque (Ratio 09): 375 lb-ft (508 Nm)
- Continuous Torque (Ratio 09): 263 lb-ft (356 Nm)
- Intermittent HP @ 1000 RPM (Ratio 09): 71 HP (53 kW)
- Intermittent Torque (Ratios 12, 13): 325 lb-ft (441 Nm)
- Continuous Torque (Ratios 12, 13): 228 lb-ft (309 Nm)
- Intermittent HP @ 1000 RPM (Ratios 12, 13): 62 HP (46 kW)
