Description

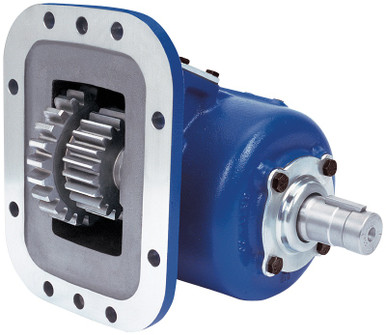

The Muncie SH8S-U6809-E32X or SH8SU6809E32X is an SH8 Series power take-off built for high-torque applications. Part of Muncie’s SH Series, this unit fills the performance gap between the TG and 82 Series with an integral air-shift-only design that eliminates the exposed air cylinder. The 8-bolt cast iron housing simplifies mounting and adds structural strength. With 17 input gear set options, it fits most popular transmissions, and 12 output shaft configurations cover the most common pump types. Five available speed ratios give installers flexibility across demanding vocational applications. Call us to confirm proper fit and ratio selection for your application.
Features
SH8 Series air-shift-only PTO designed for high-torque applications
Integral air shift design with no exposed air cylinder
8-bolt cast iron housing for secure, straightforward mounting
17 input gear sets compatible with most popular transmissions
12 output shaft options to fit most common pump types
5 available speed ratios for application flexibility
Tech Specs
- Series: SH8 Series Power Take-Off
- Shift Type: Air shift only (integral design, no exposed air cylinder)
- Housing: 8-bolt cast iron
- Input Gear Sets: 17 options
- Output Shaft Options: 12
- Speed Ratios Available: 5
- Dimensions (H x W x L): 11.63 in. x 13.38 in. x 15.63 in.
