Description

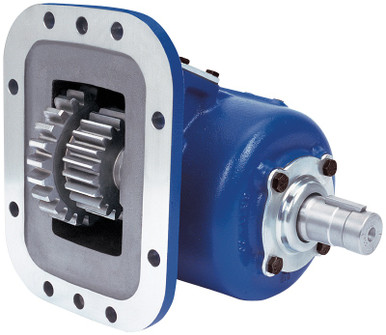

The Muncie SH8S-U6005-P3IX or SH8SU6005P3IX is an air-shift-only power take-off from Muncie’s SH Series, positioned between the TG and 82 Series for high-torque applications. The housing is 8-bolt cast iron, measuring 11.63 in. x 13.38 in. x 15.63 in., for straightforward mounting on most popular transmissions. The integral air shift design keeps the air cylinder fully enclosed, with no exposed cylinder components. Five speed ratios cover a wide range of drive requirements, and 12 output shaft options accommodate most popular pump types. Intermittent torque capacity at the 05 and 07 speed ratios reaches 400 lb-ft, stepping down by ratio. Call us to confirm proper fit for your application.
Features
Air shift only design with integral, fully enclosed air cylinder – no exposed air cylinder
8-bolt cast iron housing, 11.63 in. x 13.38 in. x 15.63 in. overall dimensions
17 input gear sets to fit most popular transmissions
5 speed ratios; intermittent torque ranges from 325 to 400 lb-ft depending on ratio
12 output shaft options to match most popular pump types
Designed to fill the torque gap between the Muncie TG and 82 Series PTOs
Tech Specs
- Housing: 8-bolt cast iron
- Dimensions (H x W x L): 11.63 in. x 13.38 in. x 15.63 in.
- Shift Type: Air shift only (integral, no exposed air cylinder)
- Input Gear Sets: 17 (fits most popular transmissions)
- Speed Ratios Available: 5
- Output Shaft Options: 12 (fits most popular pump types)
- Speed Ratio 05: 76 HP intermittent @ 1000 RPM; 400 lb-ft intermittent torque; 280 lb-ft continuous torque
- Speed Ratio 07: 76 HP intermittent @ 1000 RPM; 400 lb-ft intermittent torque; 280 lb-ft continuous torque
- Speed Ratio 09: 71 HP intermittent @ 1000 RPM; 375 lb-ft intermittent torque; 263 lb-ft continuous torque
- Speed Ratio 12: 62 HP intermittent @ 1000 RPM; 325 lb-ft intermittent torque; 228 lb-ft continuous torque
- Speed Ratio 13: 62 HP intermittent @ 1000 RPM; 325 lb-ft intermittent torque; 228 lb-ft continuous torque
