Description

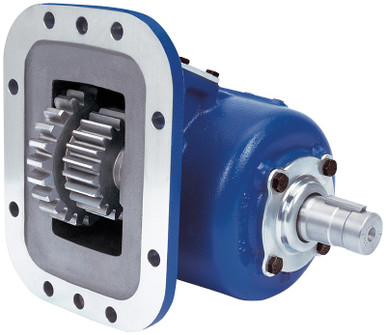

The Muncie SH8 Series power take-off, part number SH8S-S6812-E1BX or SH8SS6812E1BX, is an air-shift-only PTO built for high-torque applications. Its integral air shift design eliminates an exposed air cylinder, keeping the installation clean and the profile tight. The 8-bolt cast iron housing mounts easily and holds up in demanding service. With 17 input gear sets covering most popular transmissions, 5 available speed ratios, and 12 output shaft options to suit most common pump types, this unit covers a wide range of vocational truck builds. Series torque ratings at intermittent duty reach 400 ft-lb at speed ratios 05 and 07, stepping down to 375 ft-lb at ratio 09 and 325 ft-lb at ratios 12 and 13. Call us to confirm proper fit for your transmission and pump combination.
Features
Integral air shift design with no exposed air cylinder
8-bolt cast iron housing for strength and straightforward mounting
17 input gear sets to fit most popular transmissions
5 available speed ratios for application flexibility
12 output shaft options to match most common pump types
Series intermittent torque ratings from 325 to 400 ft-lb depending on speed ratio
Tech Specs
- Series: Muncie SH8 Series PTO
- Housing: 8-bolt cast iron
- Shift type: Air shift only (integral, no exposed air cylinder)
- Input gear sets: 17
- Speed ratios available: 5
- Output shaft options: 12
- Intermittent torque (ratios 05 and 07): 400 ft-lb (542 NM)
- Intermittent torque (ratio 09): 375 ft-lb (508 NM)
- Intermittent torque (ratios 12 and 13): 325 ft-lb (441 NM)
- Continuous torque (ratios 05 and 07): 280 ft-lb (379 NM)
- Continuous torque (ratio 09): 263 ft-lb (356 NM)
- Continuous torque (ratios 12 and 13): 228 ft-lb (309 NM)
- Intermittent HP at 1000 RPM (ratios 05 and 07): 76 HP (57 kW)
- Intermittent HP at 1000 RPM (ratio 09): 71 HP (53 kW)
- Intermittent HP at 1000 RPM (ratios 12 and 13): 62 HP (46 kW)
