Description

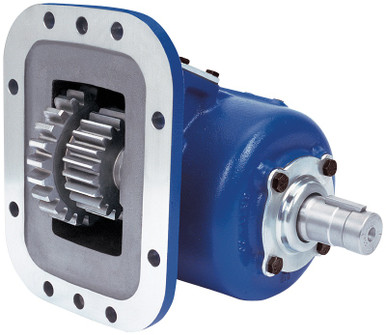

The Muncie SH8S-M6512-P3EX or SH8SM6512P3EX is an air-shift power take-off from Muncie’s SH Series, built to handle high-torque applications that fall between the TG and 82 Series in capacity. The integral air shift design keeps the air cylinder fully enclosed inside the housing, eliminating exposure to road debris. The 8-bolt cast iron housing mounts easily and provides rigid, high-strength attachment to the transmission. Seventeen input gear sets cover most popular transmission bolt patterns, and twelve output shaft options match the majority of hydraulic pump configurations. Five available speed ratios let you match output speed to the driven equipment. Intermittent torque ratings reach up to 400 lb-ft (542 Nm) at the top speed ratios. Call us to confirm the correct ratio and output shaft configuration for your application.
Features
Integral air shift design – air cylinder fully enclosed, no external exposure
8-bolt cast iron housing for rigid, high-strength transmission mounting
17 input gear sets covering most popular transmission bolt patterns
12 output shaft options to fit most hydraulic pump types
5 available speed ratios – intermittent torque up to 400 lb-ft (542 Nm)
Air shift only operation, designed for high-torque demands between TG and 82 Series
Tech Specs
- Housing: 8-bolt cast iron
- Shift Type: Air shift only (integral, no exposed air cylinder)
- Input Gear Sets: 17
- Output Shaft Options: 12
- Speed Ratios Available: 5
- Speed Ratio 05 – Intermittent: 76 HP / 400 lb-ft (57 kW / 542 Nm) | Continuous: 280 lb-ft (379 Nm)
- Speed Ratio 07 – Intermittent: 76 HP / 400 lb-ft (57 kW / 542 Nm) | Continuous: 280 lb-ft (379 Nm)
- Speed Ratio 09 – Intermittent: 71 HP / 375 lb-ft (53 kW / 508 Nm) | Continuous: 263 lb-ft (356 Nm)
- Speed Ratio 12 – Intermittent: 62 HP / 325 lb-ft (46 kW / 441 Nm) | Continuous: 228 lb-ft (309 Nm)
- Speed Ratio 13 – Intermittent: 62 HP / 325 lb-ft (46 kW / 441 Nm) | Continuous: 228 lb-ft (309 Nm)
- Dimensions (H x W x L): 11.63 in. x 13.38 in. x 15.63 in.
