Description

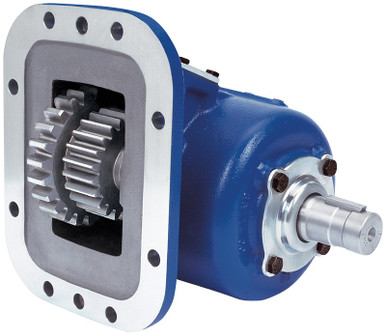

The Muncie SH8 Series Power Take-Off, part number SH8F-E8009-P1IX or SH8FE8009P1IX, is an air-shift-only PTO engineered for high-torque truck applications. The integral air shift design encloses the air cylinder within the housing, eliminating exposed external components. An 8-bolt cast iron housing keeps mounting straightforward on a wide range of installations. With 17 input gear sets available across the SH8 platform, this series covers most popular transmission applications, while 12 output shaft options accommodate the most common hydraulic pump configurations. Five speed ratios let you match output to the driven equipment. Intermittent torque ratings reach up to 400 lb-ft (542 Nm) at the top speed ratios, with continuous ratings to 280 lb-ft (379 Nm). Call us to confirm the exact ratio and output configuration for your application.
Features
Integral air shift design – no exposed air cylinder
8-bolt cast iron housing for strong, straightforward mounting
17 input gear sets cover most popular transmission applications
12 output shaft options fit most common hydraulic pump types
5 available speed ratios with intermittent torque up to 400 lb-ft (542 Nm)
Continuous torque rating up to 280 lb-ft (379 Nm) at top speed ratios
Tech Specs
- Series: Muncie SH8 Series Power Take-Off
- Part Number: SH8F-E8009-P1IX or SH8FE8009P1IX
- Shift Type: Air shift only (integral, no exposed air cylinder)
- Housing: 8-bolt cast iron
- Input Gear Sets: 17 (fits most popular transmissions)
- Output Shaft Options: 12 (fits most popular pump types)
- Speed Ratios Available: 5
- Dimensions (H x W x L): 11.63 in. x 13.38 in. x 15.63 in.
- Speed Ratio 05: Intermittent 76 HP / 400 lb-ft (542 Nm) | Continuous 280 lb-ft (379 Nm)
- Speed Ratio 07: Intermittent 76 HP / 400 lb-ft (542 Nm) | Continuous 280 lb-ft (379 Nm)
- Speed Ratio 09: Intermittent 71 HP / 375 lb-ft (508 Nm) | Continuous 263 lb-ft (356 Nm)
- Speed Ratio 12: Intermittent 62 HP / 325 lb-ft (441 Nm) | Continuous 228 lb-ft (309 Nm)
- Speed Ratio 13: Intermittent 62 HP / 325 lb-ft (441 Nm) | Continuous 228 lb-ft (309 Nm)
