Description

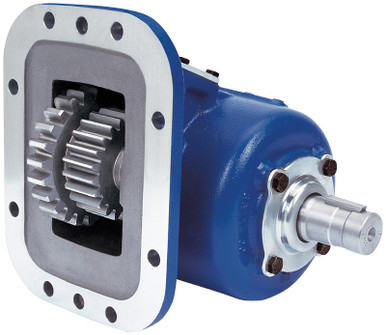

The Muncie SH8D-S6812-E1ZX or SH8DS6812E1ZX is an air-shift-only power take-off from Muncie’s SH8 Series, built to handle high-torque applications that fall between lighter-duty and heavier-series PTOs. The 8-bolt cast iron housing simplifies mounting and delivers structural strength in demanding service. An integral air shift design keeps the air cylinder enclosed, eliminating exposed components. With 17 input gear sets, this PTO fits most popular transmission configurations, and 12 output shaft options accommodate a wide range of pump types. Five available speed ratios let you match output to your specific drive requirements. The series torque ratings reach up to 400 ft-lb intermittent and 280 ft-lb continuous at the two highest speed ratios. Call us to confirm proper fit for your application.
Features
Air-shift-only design with integral air cylinder – no exposed air components
8-bolt cast iron housing for straightforward mounting and high structural strength
17 input gear sets to fit most popular transmission configurations
12 output shaft options compatible with most common pump types
5 available speed ratios with intermittent torque ratings up to 400 ft-lb (542 Nm)
Built to fill demanding high-torque applications between lighter and heavier PTO series
Tech Specs
- Housing: 8-bolt cast iron
- Shift Type: Air shift only (integral design, no exposed air cylinder)
- Input Gear Sets: 17 (fits most popular transmissions)
- Output Shaft Options: 12
- Speed Ratios Available: 5
- Intermittent Torque (Ratios 05, 07): 400 ft-lb (542 Nm)
- Continuous Torque (Ratios 05, 07): 280 ft-lb (379 Nm)
- Intermittent HP at 1000 RPM (Ratios 05, 07): 76 HP (57 kW)
- Intermittent Torque (Ratio 09): 375 ft-lb (508 Nm)
- Continuous Torque (Ratio 09): 263 ft-lb (356 Nm)
- Intermittent HP at 1000 RPM (Ratio 09): 71 HP (53 kW)
- Intermittent Torque (Ratios 12, 13): 325 ft-lb (441 Nm)
- Continuous Torque (Ratios 12, 13): 228 ft-lb (309 Nm)
- Intermittent HP at 1000 RPM (Ratios 12, 13): 62 HP (46 kW)
- Overall Dimensions (H x W x L): 11.63 in. x 13.38 in. x 15.63 in.
- Also referenced as: MUSH8DS6812E1ZX
