Description

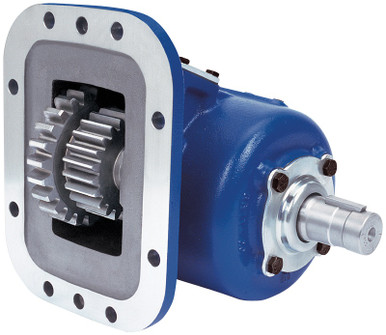

The Muncie SH8D-S6809-A1EX or SH8DS6809A1EX is an air-shift power take-off from Muncie’s SH Series, designed to bridge the gap between lighter and heavier PTO lines for high-torque truck applications. The integral air shift mechanism keeps the air cylinder fully enclosed within the housing, eliminating external cylinder exposure. The 8-bolt cast iron housing mounts securely to most popular transmissions, with 17 input gear set options and 12 output shaft configurations covering a wide range of hydraulic pump interfaces. Five speed ratios are available; intermittent torque ratings reach 400 lb.ft. (542 Nm) at the two highest-ratio positions. Call us to confirm the correct ratio and output shaft configuration for your specific transmission and pump setup.
Features
Integral air shift design – air cylinder fully enclosed, no external cylinder exposure
8-bolt cast iron housing for secure, high-strength mounting
17 input gear set options fit most popular transmissions
12 output shaft configurations cover most common hydraulic pump interfaces
5 speed ratios available; intermittent torque up to 400 lb.ft. (542 Nm)
Air-shift only operation – engineered specifically for high-torque applications
Tech Specs
- Series: Muncie SH Series Power Take-Off
- Part Number: SH8D-S6809-A1EX or SH8DS6809A1EX
- Shift Type: Air shift only (integral, no exposed air cylinder)
- Housing: 8-bolt cast iron
- Input Gear Sets: 17 options
- Output Shaft Options: 12 options
- Speed Ratios Available: 5
- Intermittent Torque (Ratios 05, 07): 400 lb.ft. (542 Nm)
- Continuous Torque (Ratios 05, 07): 280 lb.ft. (379 Nm)
- Intermittent HP @ 1000 RPM (Ratios 05, 07): 76 HP (57 kW)
- Intermittent Torque (Ratio 09): 375 lb.ft. (508 Nm)
- Continuous Torque (Ratio 09): 263 lb.ft. (356 Nm)
- Intermittent HP @ 1000 RPM (Ratio 09): 71 HP (53 kW)
- Intermittent Torque (Ratios 12, 13): 325 lb.ft. (441 Nm)
- Continuous Torque (Ratios 12, 13): 228 lb.ft. (309 Nm)
- Intermittent HP @ 1000 RPM (Ratios 12, 13): 62 HP (46 kW)
