Description

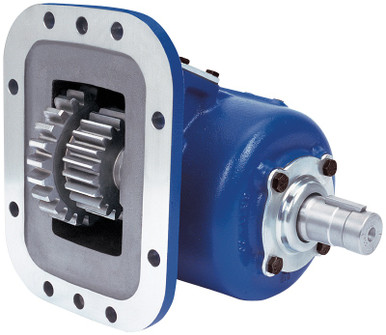

The Muncie SH8B-U6807-P1KX or SH8BU6807P1KX is an SH8 Series power take-off built for high-torque applications where the TG Series falls short but an 82 Series is more than needed. The integral air shift design keeps the air cylinder internal, eliminating the exposed actuator common on other PTOs. The 8-bolt cast iron housing simplifies mounting and holds up under demanding duty cycles. Seventeen input gear sets cover most popular transmission configurations, and 12 output shaft options accommodate a wide range of hydraulic pump types. Five available speed ratios let you match the PTO to the pump speed requirement. Dimensions are 11.63 in. H x 13.38 in. W x 15.63 in. L. Call us to confirm proper fit for your application.
Features
Integral air shift design – no exposed air cylinder for a cleaner, more protected installation
8-bolt cast iron housing for straightforward mounting and long-term structural strength
17 input gear sets to fit most popular transmission configurations
12 output shaft options to match most hydraulic pump types
5 available speed ratios for flexibility across applications
SH8 Series fills the torque gap between the Muncie TG and 82 Series PTOs
Tech Specs
- Housing: 8-bolt cast iron
- Shift Type: Integral air shift (no exposed air cylinder)
- Input Gear Sets: 17
- Output Shaft Options: 12
- Speed Ratios: 5
- Dimensions: 11.63 in. H x 13.38 in. W x 15.63 in. L
- Alternate Part Number: MUSH8BU6807P1KX
