Description

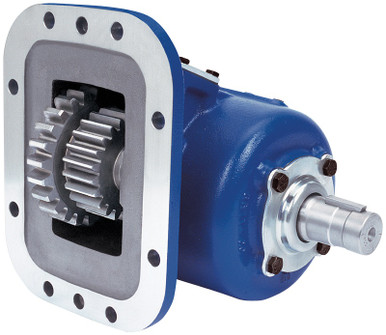

The Muncie SH8B-U6807-A1KX or SH8BU6807A1KX is an SH8 Series air shift power take-off built for high-torque applications. The integral air shift design keeps the air cylinder internal, eliminating the exposed external cylinder common on other units. The 8-bolt cast iron housing simplifies mounting and delivers the structural strength heavy-duty service demands. With 17 input gear sets, the SH8 Series fits most popular transmission configurations, while 12 output shaft options accommodate a wide range of pump types. Five available speed ratios let you match output to your specific hydraulic requirements. Torque ratings reach 400 lb-ft intermittent and 280 lb-ft continuous at the 05 and 07 speed ratios. Call us to confirm proper fit for your application.
Features
Integral air shift design with no exposed air cylinder
8-bolt cast iron housing for strength and straightforward mounting
17 input gear sets to fit most popular transmission models
12 output shaft options to match most common pump types
5 available speed ratios for flexible output matching
Intermittent torque up to 400 lb-ft (542 Nm) at 05 and 07 speed ratios
Tech Specs
- Housing: 8-bolt cast iron
- Shift Type: Air shift only (integral, no exposed air cylinder)
- Speed Ratios Available: 5
- Input Gear Sets: 17
- Output Shaft Options: 12
- Intermittent Torque (Ratios 05, 07): 400 lb-ft (542 Nm)
- Continuous Torque (Ratios 05, 07): 280 lb-ft (379 Nm)
- Intermittent HP @ 1000 RPM (Ratios 05, 07): 76 HP (57 kW)
- Intermittent Torque (Ratio 09): 375 lb-ft (508 Nm)
- Continuous Torque (Ratio 09): 263 lb-ft (356 Nm)
- Intermittent HP @ 1000 RPM (Ratio 09): 71 HP (53 kW)
- Intermittent Torque (Ratios 12, 13): 325 lb-ft (441 Nm)
- Continuous Torque (Ratios 12, 13): 228 lb-ft (309 Nm)
- Intermittent HP @ 1000 RPM (Ratios 12, 13): 62 HP (46 kW)
