Description

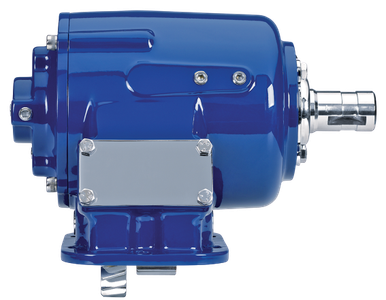

The Muncie SH6S-U6809-M1BX (also referenced as SH6SU6809M1BX) is an SH Series air-shift power take-off built for high-torque applications. The SH Series fills the gap between Muncie’s TG and 82 Series, combining an integral air-shift design with no exposed air cylinder and a 6-bolt cast iron housing. Compatibility is broad: 17 input gear sets cover most popular transmissions, and 12 output shaft options accommodate most common pump types. Five available speed ratios let this unit serve a range of drive applications. Intermittent torque ratings across the available speed ratios range from 325 to 400 lb-ft at 1,000 RPM. Call us to confirm the specific ratio and output configuration for your application.
Features
Air shift only design with integral air cylinder, no external cylinder exposure
6-bolt cast iron housing for strength and straightforward mounting
17 input gear sets compatible with most popular transmissions
12 output shaft options to fit most common pump types
5 available speed ratios for application versatility
Intermittent torque capacity up to 400 lb-ft at 1,000 RPM (speed ratios 05 and 07)
