Description

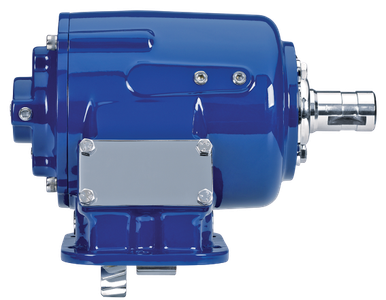

The Muncie SH6S-U6807-P1EX or SH6SU6807P1EX is an SH6 Series air shift power take-off built for high-torque applications. It features an integral air shift design with no exposed air cylinder, a 6-bolt cast iron housing, and 5 available speed ratios. The SH Series covers 17 input gear sets to fit most popular transmissions, and 12 output shaft options to match most common pump types. Depending on speed ratio, intermittent torque capacity ranges from 325 to 400 lb-ft at 1,000 RPM. Overall dimensions are 15.63 in. long x 13.38 in. wide x 11.63 in. tall. Available from Pro Gear and Transmission. Call us to confirm proper fit for your transmission and pump configuration.
Features
Integral air shift design with no exposed air cylinder
6-bolt cast iron housing for strength and easy mounting
5 speed ratios to suit a range of application requirements
17 input gear sets compatible with most popular transmissions
12 output shaft options to fit most common pump types
Intermittent torque ratings from 325 to 400 lb-ft at 1,000 RPM depending on speed ratio
