Description

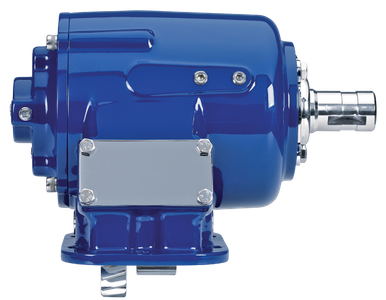

The Muncie SH6S-U6005-A3ZP or SH6SU6005A3ZP is an SH Series air-shift power take-off built for high-torque applications. The SH Series fills the gap between the TG and 82 Series with an integral air shift design that keeps the air cylinder fully enclosed, protecting it from road exposure and contamination. The 6-bolt cast iron housing mounts to most popular transmissions via one of 17 input gear set configurations. Five speed ratios and 12 output shaft options give this unit a wide range of pump compatibility. At speed ratio 05 or 07, intermittent torque capacity reaches 400 lb-ft (542 Nm) at 1,000 RPM. Call us to confirm proper fit for your transmission and pump configuration.
Features
Integral air shift design with no exposed air cylinder
6-bolt cast iron housing for strong, straightforward mounting
17 input gear set options covering most popular transmissions
5 speed ratios for application versatility
12 output shaft options compatible with most popular pump types
Intermittent torque up to 400 lb-ft (542 Nm) at 1,000 RPM (speed ratios 05 and 07)
