Description

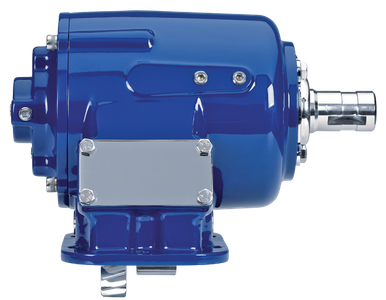

The Muncie SH6S-M6507-A3BX or SH6SM6507A3BX is a heavy-duty air-shift power take-off from the Muncie SH Series, designed to fill the performance gap between the TG and 82 Series PTOs. It features an integral air shift design with no exposed air cylinder, a 6-bolt cast iron housing, and compatibility with 17 input gear sets to fit most popular transmissions. Five speed ratios and 12 output shaft options give this unit broad coverage across pump types and applications. At speed ratio 05 or 07, the series rates at 400 ft-lb intermittent torque and 280 ft-lb continuous at 1,000 RPM. These are series-level torque ratings; call us to confirm the specific ratio and output configuration for your application.
Features
Integral air shift design with no exposed air cylinder
6-bolt cast iron housing for strength and ease of mounting
17 input gear sets covering most popular transmission applications
5 available speed ratios for application versatility
12 output shaft options to fit most popular pump types
Series intermittent torque ratings from 325 to 400 ft-lb at 1,000 RPM depending on speed ratio
