Description

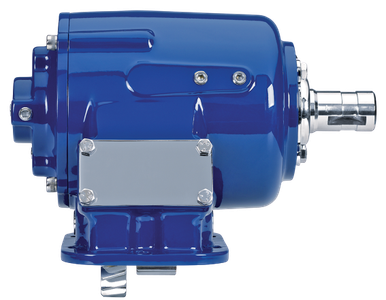

The Muncie SH6S-M6507-A1PX is a 6-bolt, air-shift-only Power Take-Off from Muncie’s SH Series, engineered to bridge the gap between the TG and 82 Series for high-torque truck applications. The integral air shift design keeps all actuation components inside the housing with no exposed air cylinder. The cast iron 6-bolt housing mounts to most popular transmission bolt patterns, and 12 output shaft options accommodate a wide range of hydraulic pump configurations. This unit is also referenced as SH6SM6507A1PX. The SH Series supports 5 speed ratios and 17 input gear sets, making it compatible with the majority of popular transmissions. Call us to confirm proper fit for your specific transmission and pump setup. Available from Pro Gear and Transmission.
Features
Air-shift-only operation with integral design and no exposed air cylinder
6-bolt cast iron housing for straightforward mounting and structural strength
17 input gear sets for compatibility with most popular transmissions
12 output shaft options to fit most popular pump types
5 available speed ratios for versatile application matching
Up to 400 ft-lb intermittent torque and 280 ft-lb continuous torque (at speed ratios 05 and 07)
