Description

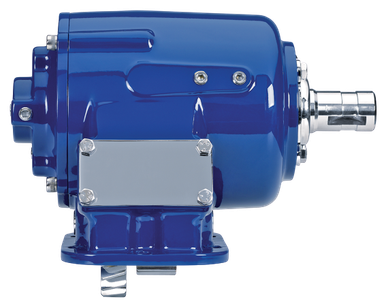

The Muncie SH6S-F7005-E3KX or SH6SF7005E3KX is an air shift power take-off from the Muncie SH Series, built for high torque applications. This PTO features a 6-bolt cast iron housing for straightforward installation, an integral air shift design with no exposed air cylinder, and compatibility with 17 input gear sets to fit most popular transmissions. Five available speed ratios and 12 output shaft options give it broad pump compatibility. At the 05 and 07 speed ratios, the SH Series delivers up to 76 intermittent HP at 1,000 RPM and 400 lb-ft of intermittent torque (280 lb-ft continuous). The SH Series fills the gap between the Muncie TG and 82 Series. Call us to confirm proper fit for your transmission and application.
Features
Integral air shift design with no exposed air cylinder
6-bolt cast iron housing for secure, straightforward mounting
17 input gear sets compatible with most popular transmissions
12 output shaft options to fit most popular pump types
5 available speed ratios across the SH Series
Intermittent torque up to 400 lb-ft (542 NM) at the 05 and 07 speed ratios
