Description

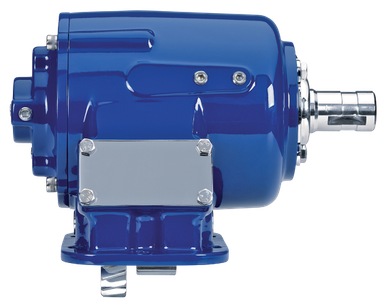

The Muncie SH6S-F7005-E1BX or SH6SF7005E1BX is a 6-bolt, air shift power take-off from Muncie Power’s SH Series, designed to bridge the gap between the TG and 82 Series for demanding high-torque applications. The integral air shift design eliminates the exposed air cylinder, simplifying installation and reducing the risk of damage in tight mounting situations. The 6-bolt cast iron housing provides a strong, straightforward mount to a wide range of transmissions. With 17 input gear set options across the SH Series, 5 speed ratios, and 12 output shaft configurations, this PTO is engineered to suit a broad range of pump types. Sold by Pro Gear and Transmission. Call us to confirm proper fit for your application.
Features
Air shift only design with no exposed air cylinder
6-bolt cast iron housing for strong, straightforward mounting
17 input gear set options across the SH Series fit most popular transmissions
12 output shaft configurations suit most popular pump types
5 speed ratios available across the SH Series for application versatility
Intermittent torque ratings up to 400 ft-lb (542 Nm) at 1,000 RPM depending on speed ratio selected
