Description

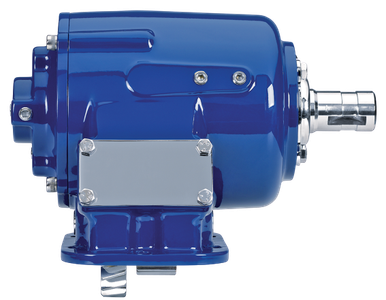

The Muncie SH6S-F6612-E32X or SH6SF6612E32X is an air shift power take-off from the SH Series, engineered for high-torque truck applications. The SH Series was built to bridge the gap between the TG and 82 Series and features an integral air shift design with no exposed air cylinder. A 6-bolt cast iron housing keeps mounting straightforward and strong. The series offers 17 input gear sets to fit most popular transmissions and 12 output shaft options to match a wide range of pump types. Five available speed ratios cover a broad spread of performance needs, with intermittent torque ratings reaching 400 ft-lb at speed ratios 05 and 07. Call us to confirm proper fit for your application.
Features
Integral air shift design with no exposed air cylinder
6-bolt cast iron housing for strength and straightforward mounting
17 input gear sets compatible with most popular transmissions
12 output shaft options to match most popular pump types
5 speed ratios for application versatility
Intermittent torque up to 400 ft-lb (542 Nm) at speed ratios 05 and 07
Tech Specs
- Housing: 6-bolt cast iron
- Shift type: Air shift (integral, no exposed air cylinder)
- Input gear sets: 17 (fits most popular transmissions)
- Output shaft options: 12 (fits most popular pump types)
- Speed ratios available: 5
- Dimensions (H x W x L): 11.63 in. x 13.38 in. x 15.63 in.
