Description

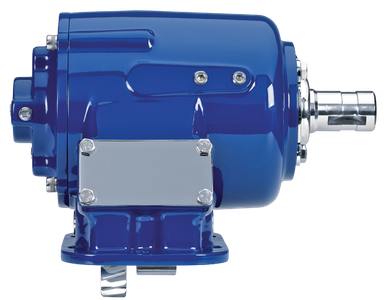

The Muncie SH6S-F6612-A3ZX (also referenced as SH6SF6612A3ZX) is an SH Series air-shift power take-off built for high-torque applications. It features an integral air-shift design with no exposed air cylinder, a 6-bolt cast iron housing for straightforward mounting, 5 available speed ratios, 17 input gear sets to fit most popular transmissions, and 12 output shaft options to match most common pump configurations. Housing dimensions are 11.63 in. H x 13.38 in. W x 15.63 in. L. The SH Series was designed to fill the gap between Muncie’s TG and 82 Series PTOs. Call us to confirm proper fit for your transmission and application.
Features
Integral air shift design with no exposed air cylinder
6-bolt cast iron housing: 11.63 in. H x 13.38 in. W x 15.63 in. L
17 input gear sets to fit most popular transmissions
5 available speed ratios
12 output shaft options to match most common pump types
Series intermittent torque ratings up to 400 lb-ft at 1,000 RPM (76 HP) depending on speed ratio selected
