Description

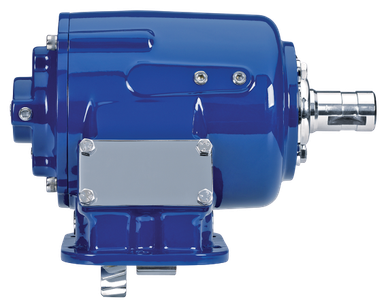

The Muncie SH6S-F6607-A1BX or SH6SF6607A1BX is an SH Series air-shift power take-off designed for high-torque truck applications. It features an integral air-shift design with no exposed air cylinder, a 6-bolt cast iron housing, and 17 input gear sets covering most popular transmissions. Twelve output shaft options accommodate most common pump configurations, while five speed ratios provide flexibility across applications. At the 05 and 07 speed ratios, intermittent torque capacity reaches 400 lb-ft (542 Nm) at 1,000 RPM. Overall dimensions are 15.63 in. long x 13.38 in. wide x 11.63 in. tall. Call us to confirm proper fit for your transmission and pump setup.
Features
Integral air-shift design with no exposed air cylinder
6-bolt cast iron housing for rigid, straightforward mounting
17 input gear sets to fit most popular transmission models
12 output shaft options to match most common pump types
5 speed ratios available across the SH Series
Intermittent torque up to 400 lb-ft (542 Nm) at 1,000 RPM at 05 and 07 speed ratios
