Description

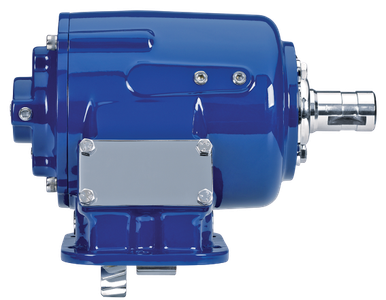

The Muncie SH6S-F6312-A3PX or SH6SF6312A3PX is an SH6 Series air-shift-only power take-off built for high-torque applications. The integral air shift design keeps the air cylinder fully enclosed within the housing, protecting it from road debris and simplifying installation. The 6-bolt cast iron housing mounts to the transmission without adapters on most popular transmission configurations. Muncie engineers this series with 17 input gear sets and 12 output shaft options, covering a wide range of common pump interfaces. Five speed ratios are available within the SH Series, and the series torque ratings at 1,000 RPM reach up to 400 lb-ft intermittent and 280 lb-ft continuous. Overall dimensions are 11.63 in. H x 13.38 in. W x 15.63 in. L. Call us to confirm proper fit for your transmission and pump combination.
Features
Air-shift-only design with fully enclosed integral air cylinder – no exposed air cylinder hardware
6-bolt cast iron housing for secure, high-strength transmission mounting
17 input gear sets for compatibility with most popular heavy-duty transmissions
12 output shaft options to match most common hydraulic pump interfaces
5 available speed ratios across the SH Series for application versatility
Overall dimensions: 11.63 in. H x 13.38 in. W x 15.63 in. L
