Description

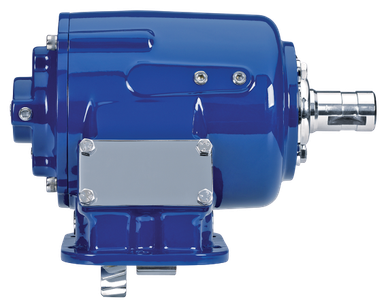

The Muncie SH6S-F6309-A3ZX or SH6SF6309A3ZX is a heavy-duty air-shift power take-off from the Muncie SH Series, designed to bridge the gap between lighter and heavier PTO lines for high-torque applications. The integral air shift design keeps the air cylinder fully enclosed within the housing, eliminating exposed components. Mounting uses a 6-bolt cast iron housing. The SH Series supports 17 input gear sets to fit most popular transmission configurations and offers 12 output shaft options to match common pump types. Five speed ratios are available across the series. The unit measures 15.63 in. long x 13.38 in. wide x 11.63 in. tall. Call us to confirm proper fit for your transmission and pump combination.
Features
Integral air shift design with no exposed air cylinder
6-bolt cast iron housing for secure, high-strength mounting
17 input gear sets to fit most popular transmissions
12 output shaft options to match common pump types
5 available speed ratios across the SH Series
Overall dimensions: 15.63 in. L x 13.38 in. W x 11.63 in. H
