Description

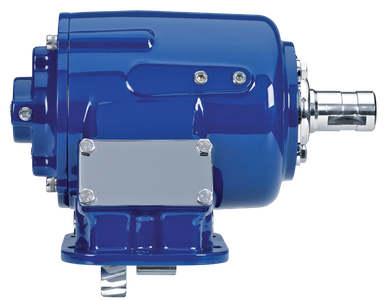

The Muncie SH6F-F8407-A1KX or SH6FF8407A1KX is a 6-bolt cast iron air-shift power take-off from the Muncie SH Series, designed to bridge the gap between lighter and heavier PTO families in high-torque applications. The integral air shift design keeps all actuation components enclosed with no exposed air cylinder. The housing measures 11.63 in. H x 13.38 in. W x 15.63 in. L. With 17 input gear set options, the SH Series fits most popular transmission configurations, and 12 output shaft options cover the majority of hydraulic pump types. Five available speed ratios allow the unit to be spec’d for a wide range of duty cycles. Call us to confirm the right configuration for your truck and pump setup.
Features
Integral air shift design with no exposed air cylinder
6-bolt cast iron housing for strength and easy mounting
17 input gear sets compatible with most popular transmissions
12 output shaft options to fit most popular pump types
5 available speed ratios for application versatility
Housing dimensions: 11.63 in. H x 13.38 in. W x 15.63 in. L
