Description

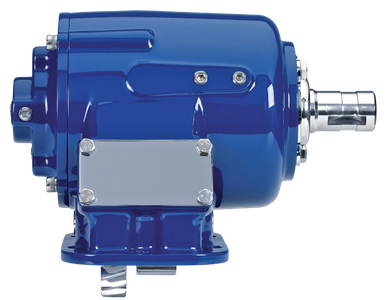

The Muncie SH6D-S6807-E1BX or SH6DS6807E1BX is a 6-bolt SH6 Series air-shift power take-off engineered for high-torque applications. The integral air shift design eliminates the exposed air cylinder, simplifying installation and reducing potential leak points. The cast iron housing mounts via a 6-bolt pattern and accepts 17 input gear sets to cover most popular transmissions. Five speed ratios and 12 output shaft options give this unit broad compatibility with common hydraulic pump types. Intermittent torque rating reaches 400 ft-lb (542 NM) at speed ratios 05 and 07. Overall dimensions are 11.63 in. H x 13.38 in. W x 15.63 in. L. Call us to confirm proper fit for your application.
Features
Integral air shift design with no exposed air cylinder
6-bolt cast iron housing for strength and straightforward mounting
17 input gear sets compatible with most popular transmissions
12 output shaft options to fit most common hydraulic pump types
5 speed ratios; intermittent torque up to 400 ft-lb (542 NM) at speed ratios 05 and 07
Overall dimensions: 11.63 in. H x 13.38 in. W x 15.63 in. L
