Description

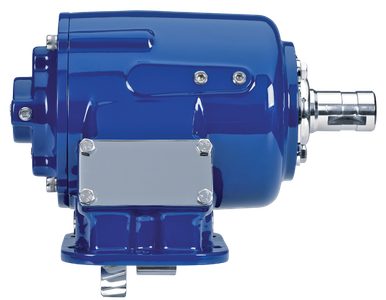

The Muncie SH6B-U6809-E1EX (also referenced as SH6BU6809E1EX) is an SH Series air-shift-only power take-off built for high-torque applications. The integral air shift design keeps the air cylinder fully enclosed within the housing, eliminating exposed external components. Mounting uses a 6-bolt cast iron housing for strength and straightforward installation. The SH Series spans 17 input gear sets to fit most popular transmissions, 5 speed ratios for versatility, and 12 output shaft options to match most common pump configurations. Torque ratings vary by speed ratio, topping out at 400 lb-ft intermittent and 280 lb-ft continuous at the 05 and 07 ratio positions. Call us to confirm proper fit for your transmission and pump setup.
Features
Integral air shift design with no exposed air cylinder
6-bolt cast iron housing for strength and easy mounting
17 input gear sets to fit most popular transmissions
5 speed ratios for application versatility
12 output shaft options to match most popular pump types
Up to 400 lb-ft intermittent torque and 280 lb-ft continuous torque (at 05 and 07 speed ratios)
