Description

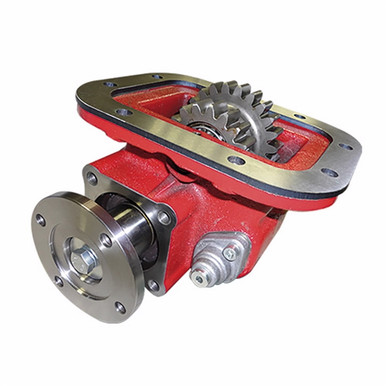

Eaton Bezares PTO 8 Bolt P/N: PT4110XJN243IC or 4110XJN243IC, for more precise availability please give us a call and we will help you out!
Features
Power take-off designed for very heavy duty application, low profile two gears, different transmission ratio. Pneumatic shifting. Also available in position 1 and 3.
Tech Specs
- Mounting position: Bottom left Note A: Air connection, thread ¼” BSP Note B: Rotation Note C: Backlash check plug Note D: Indicator switch Note E: Drive flange
Additional Information
| Engine to PTO ratio | ||||||
|---|---|---|---|---|---|---|
| INTERNAL RATIO | INTERMITTENT SERVICE | CONTINUOUS SERVICE | ||||
| Torque (Lb. FT) |
Power (HP) | Torque (Lb. FT) |
Power (HP) | |||
| At 500r.p.m. | At 1000 r.p.m. | At 500r.p.m. | At 1000 r.p.m. | |||
| 70%(C) | 470 | 45 | 90 | 340 | 33 | 65 |
| 86%(E) | 470 | 45 | 90 | 340 | 33 | 65 |
| 105%(J) | 400 | 39 | 77 | 300 | 29 | 58 |
