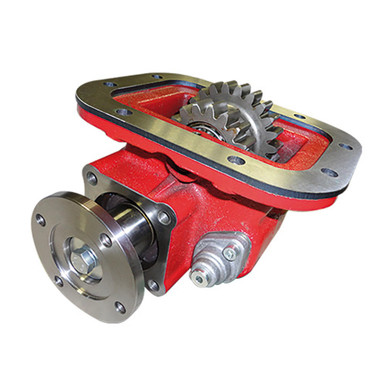

PT4110XEN751SE Eaton Bezares 8-Bolt Heavy Duty PTO or 4110XEN751SE

Description

The Eaton Bezares PT4110XEN751SE or 4110XEN751SE is an 8-bolt heavy-duty power take-off built for very heavy-duty truck applications. Its low-profile two-gear design offers multiple internal transmission ratios, including 70% (C), 86% (E), and 105% (J) engine-to-PTO ratios. Intermittent-service torque capacity reaches 470 lb-ft at 500 RPM with 90 HP at 1,000 RPM for the 70% and 86% ratio versions. The 105% ratio version is rated at 400 lb-ft intermittent at 500 RPM and 77 HP at 1,000 RPM. Pneumatic shifting via a 1/4″ BSP air connection keeps engagement clean and reliable. The unit mounts in the bottom-left position, with a backlash check plug, indicator switch, and drive flange. Also available in mounting positions 1 and 3. Call us to confirm the correct ratio and mounting position for your application.

Features

8-bolt heavy-duty mounting for demanding truck auxiliary power applications
Low-profile two-gear design with selectable internal ratios: 70% (C), 86% (E), and 105% (J)
Intermittent torque capacity up to 470 lb-ft at 500 RPM (70% and 86% ratio versions)
Pneumatic shifting with 1/4″ BSP air connection thread
Bottom-left mounting position standard; also available in positions 1 and 3
Includes backlash check plug, indicator switch, and drive flange

Tech Specs

• Mounting position: Bottom left
• Air connection thread: 1/4″ BSP
• Shift type: Pneumatic
• Internal ratio options: 70% (C), 86% (E), 105% (J)
• Intermittent torque at 500 RPM (70%/86%): 470 lb-ft
• Intermittent power at 1,000 RPM (70%/86%): 90 HP
• Continuous torque at 500 RPM (70%/86%): 340 lb-ft
• Continuous power at 1,000 RPM (70%/86%): 65 HP
• Intermittent torque at 500 RPM (105%): 400 lb-ft
• Intermittent power at 1,000 RPM (105%): 77 HP
• Continuous torque at 500 RPM (105%): 300 lb-ft
• Continuous power at 1,000 RPM (105%): 58 HP
• Note C: Backlash check plug
• Note D: Indicator switch
• Note E: Drive flange
• Cross reference: 4110XEN751SE
