Description

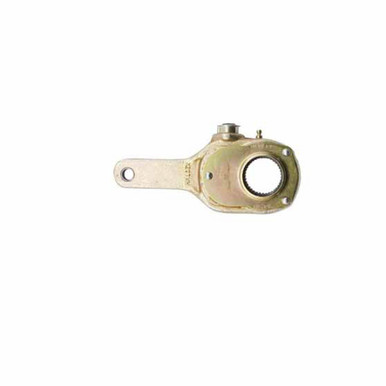

The Midland Haldex KN44041 is a manual brake adjuster (manual slack adjuster) designed for Propar applications. It features a 1-5/8″ spline diameter with a 37-spline count, a 6.0″ straight arm length, and a 0.50″ pin size. The forged steel arm is bi-directional, rated at 26,000 inch-lbs. Press-out arm hole bushings simplify service, and the assemblies carry a plated finish for rust protection. The positive lock mechanism is shaft-sealed against corrosion. Zerk fittings are included for optional lubrication despite being permanently lubricated at assembly. Compatible bushing number is 45210129. Call us to confirm proper fit for your application.
Features
1-5/8″ spline diameter, 37-spline count
6.0″ straight arm length, 0.50″ pin size
Forged steel construction rated at 26,000 inch-lbs
Bi-directional design with press-out arm hole bushings
Permanently lubricated with optional zerk fittings for field re-lubrication
Plated assemblies and shaft-sealed positive lock mechanism for rust and corrosion resistance
Compatible bushing number: 45210129
Tech Specs
- Spline Diameter-Spline Count1-5/8″-37
- Arm Length6.0
- Pin Size.50
- ApplicationPropar
