Description

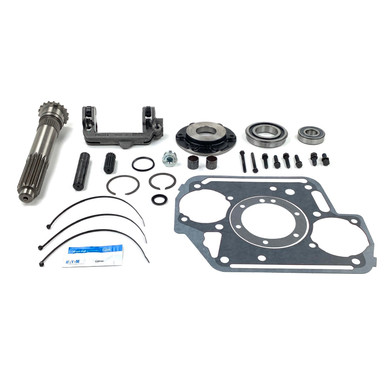

The Eaton Fuller K-4145 or K4145 is a clutch installation kit that bundles all the critical components for a complete clutch service in one package. Contents include a pilot bearing (part 5566505), a shielded roller bearing (part 4308401), an input shaft assembly (S-3127), a cross-shaft assembly kit (K-4036), a seal kit (K-4142), a front bearing cover (4308226 gasket and 4308012 cover), two snap rings (14750 and 16980), and terminal wire lubricant. Having all hardware in a single kit reduces bench time versus sourcing each component individually. Cross-references for this kit include part numbers 3702460 and K-4059. Note: Eaton has listed this kit as no longer available through standard channels. Call us to confirm current availability and whether a superseding part applies to your application.
Features
Includes pilot bearing (5566505) and shielded roller bearing (4308401)
Includes input shaft assembly (S-3127) and cross-shaft assembly kit (K-4036)
Includes seal kit (K-4142), front bearing cover (4308012), and clutch housing gasket (4308226)
Two snap rings (14750 and 16980) and terminal wire lubricant also included
Cross-references: 3702460, K-4059, K4059, FUL K4145
Note: Eaton has designated this kit as no longer available; call to confirm current supply
Tech Specs
- Part Number: K-4145 or K4145
- Alternate Part Numbers: HFK-4145
- Cross References: 3702460, K-4059, K4059, FUL K4145, FULK4145
- Contents: Pilot bearing, shielded roller bearing, input shaft assembly, cross-shaft assembly kit, seal kit, front bearing cover, clutch housing gasket, two snap rings, terminal wire lubricant
- Unit of Measure: Each
- Status: No longer available per Eaton
Additional Information
Kit Bill of Materials (per Eaton Inforanger):
– 14750 | Snap Ring | Qty 1
– 16980 | Snap Ring | Qty 1
– 4308012 | Front Bearing Cover | Qty 1
– 4308226 | Gasket, Clutch Housing | Qty 1
– 4308401 | Shielded Roller Bearing | Qty 1
– 5564527 | Lubricant, Terminal, Wire | Qty 1
– 5566505 | Pilot Bearing | Qty 1
– K-4036 | Cross-Shaft Assembly Kit | Qty 1
– K-4142 | Seal Kit | Qty 1
– S-3127 | Input Shaft Assembly | Qty 1
Eaton has listed K-4145 as no longer available. Contact Pro Gear and Transmission to verify current availability or to identify any superseding kit number for your application.Used in these Eaton Fuller models
- FM-14E310B-LAS
- FM-15E310B-LAS
- FO-12E310C-VAS
- FO-16E309ALL-VMS
- FO-16E310C-VAS
- FO-16E313A-VHP
- FO-18E313A-MHP
- FO-18E313A-VHP
