Description

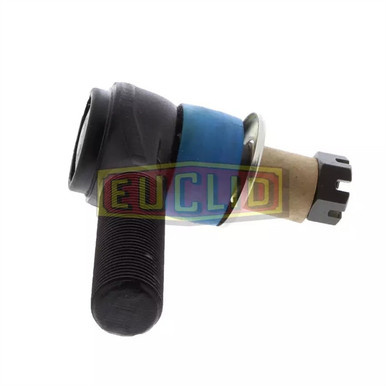

The Meritor E-4609 or E4609 is a curbside-style front axle tie rod end designed for heavy-duty steer axles. It carries industry number ES2069R and crosses to Moog, TRW, Flagg, and O&S Mfg. under that same number. Key dimensions: rod thread diameter 1.125 in., 12 threads per inch, right-hand thread direction; stud thread diameter 0.75 in., 16 threads per inch; large taper diameter 1.03 in., small taper diameter 0.896 in.; taper length 1.07 in.; and stud center to rod end 4.875 in. The end features an anti-tilt seal for added protection at the joint. Additional cross-references include Dayton Parts Batco 310277, Eaton TE2038, and Freightliner L24SV5001D23. Sold by Pro Gear and Transmission. Call us to confirm proper fit for your application.
Features
Curbside style front axle tie rod end, industry number ES2069R
Rod thread: 1.125 in. diameter, 12 threads per inch, right-hand direction
Stud thread: 0.75 in. diameter, 16 threads per inch
Large taper diameter 1.03 in., small taper diameter 0.896 in., taper length 1.07 in.
Stud center to rod end: 4.875 in.
Anti-tilt seal design
Tech Specs
- Type: 1
- Industry Number: ES2069R
- Style: Curbside
- Large Taper Diameter: 1.03 in.
- Small Taper Diameter: 0.896 in.
- Taper Length: 1.07 in.
- Rod Thread Diameter: 1.125 in.
- Rod Threads per Inch: 12
- Rod Thread Direction: Right-Hand (RH)
- Stud Thread Diameter: 0.75 in.
- Stud Threads per Inch: 16
- Stud Center to Rod End: 4.875 in.
- Notes: Anti-tilt seal
Additional Information
Cross-reference / interchange numbers for Meritor E-4609:
Dayton Parts Batco: 310277
Eaton: TE2038
Flagg: ES2069R
Freightliner: L24SV5001D23
General Motors Corp.: 2007728, 2037140
Moog: ES2069R
O and S Mfg.: ES2069R
Perfect Circle: 2692474
Provincial Whse (CAN): MES2069R
TRW: ES2069R, L20SV8110G16
TW Heavy Vehicle Pts: ES2069R
World American Parts: MW2069R
