Description

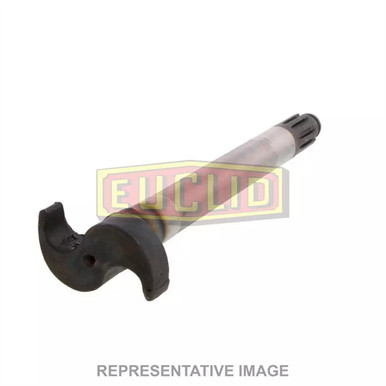

Genuine Meritor Camshaft – LH P/N: E-10903 or E10903, in box ready to ship! Do not hesitate to ask us any questions.
Tech Specs
- Camshaft Spline Count: 28
- Left or Right: LH
- Effective Length: 21.31 in.
- Brake Diameter: 12.25 in.
- Brake Type: Xtralife
- Head Type: 05
- Bushing Journal Dia.: 1.62 in.
- Camshaft Spline Dia.: 1.50 in.
- Bushing Journal Length: 2.22 in.
- Paired Camshaft: E10904
- Axle: Trailer
- Camshaft Repair Kit: E9790A
- Brake Hardware Kit: E9283, E10756, E10757, E14539
- OEM: Dana-Spicer
- Notes: 0794L/R Head Fast-Rise. Euclid fabricated open roller end brake shoe numbers are: E-2393A, E-2394A, and E-5303A
- Mfg. Part: Dana-Spicer M12WKL25-214
- Application Information 1: WARNING: These camshafts are for use with fabricated brakes shoes only! DO NOT use these new camshafts with cast brake shoe or fabricated closed roller-end brake shoes., WARNING: These camshafts are for use with fabricated brakes shoes only! DO NOT use these new camshafts with cast brake shoe or fabricated closed roller-end brake shoes.
- Application Information 2: WARNING: E-586, 1-1/2 in. diameter, Brake Shoe Rollers must be used with this new head design. E-586 rollers are now available in Brake Repair Kits E-9281, E-9282 and E-9283., WARNING: E-586, 1-1/2 in. diameter, Brake Shoe Rollers must be used with this new head design. E-586 rollers are now available in Brake Repair Kits E-9281, E-9282 and E-9283.
- Application Information 3: WARNING: These camshafts should not be used in conjunction with old Fast-Rise camshafts on the same axle. The rate of brake application is different between the two head designs., WARNING: These camshafts should not be used in conjunction with old Fast-Rise camshafts on the same axle. The rate of brake application is different between the two head designs.
