Description

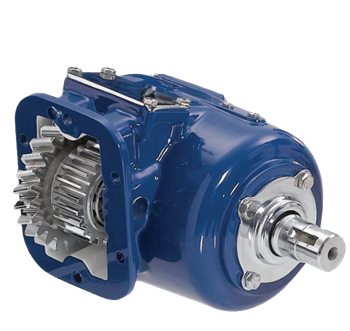

The Muncie CS6S-C7009-E1BX or CS6SC7009E1BX is a power take-off from Muncie’s CS6/CS8 Series, designed to fit a wide range of automatic and manual transmissions including the Allison 1000 and 2000 series. The CS6/CS8 Series accommodates six transmission input gears, giving it broad transmission coverage. Output options include three remote mount shaft configurations in keyed and flange types. Direct mount pump flanges conform to SAE “A”, “B”, and “BB” and DIN 5462 patterns, and the rotatable direct mount flanges allow pump positioning for clearance. The series incorporates Muncie’s patented drag brake, which prevents output shaft rotation when the PTO is in the off position. Call us to confirm proper fit for your specific transmission and application.
Features
CS6/CS8 Series PTO fits six transmission input gear configurations, covering most popular automatic and manual transmissions
Compatible with Allison 1000 and 2000 series transmissions
SAE “A”, “B”, and “BB” and DIN 5462 direct mount pump flange options
Rotatable direct mount flanges for pump positioning and clearance
Patented Muncie drag brake prevents output shaft rotation when PTO is off
Three remote mount output shaft options in keyed and flange types
